FOBO TYRE BIKE 2

Regular price $205.65

Shipping calculated at checkout.

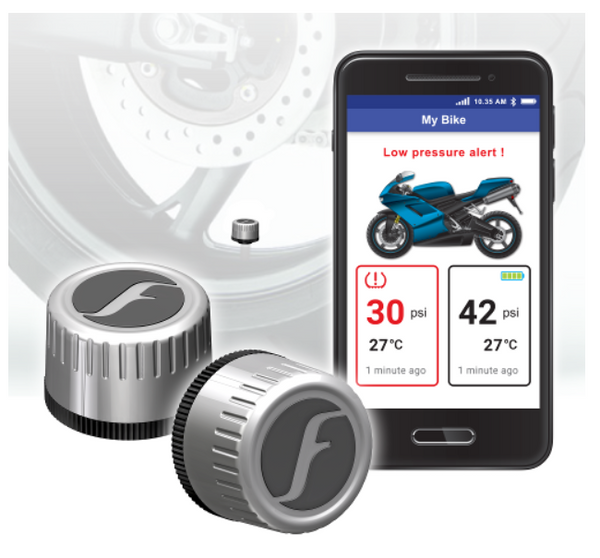

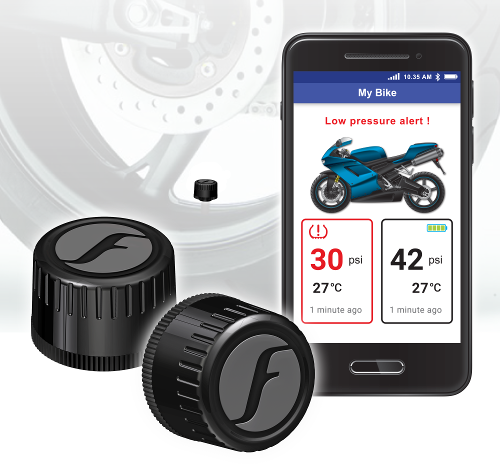

sdFOBO Bike 2

TRULY BLUETOOTH 5 TPMS FOR MOTORCYCLES

FOBO Bike 2 is a SMART tire pressure monitoring system (TPMS) for every biker (two wheeler) using latest Bluetooth 5.0 that works directly with your smart device using Android 5.0 and iOS 9.3 or later.



With Award Winning Automotive Grade Pressure Sensor & Bluetooth 5 Technology

The main function of FOBO Bike 2 is to monitor tire pressure in real time while riding or when in Bluetooth range. It detects slow or fast leak and alerts users to anomalies. It then transmits the readings to a smart phone where the user can browse. The user can set upper and lower thresholds of the air pressure. FOBO Bike 2 can send instant audio, haptic and text alerts on a smartphone/ smartwatch/ Bluetooth headset. It will monitor the pressure based on the thresholds with its smart algorithm and will provide three levels of alerts when the thresholds are breached.

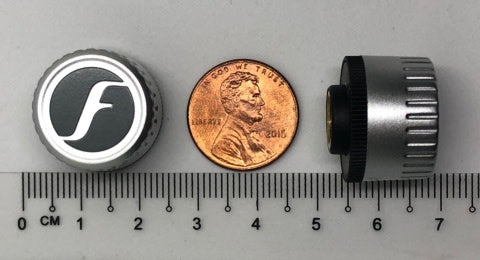

The sensor is as small as the diameter of the penny and weighs only 7.6 gram with CR1632 battery inclusive.



WHICH TIRE IS UNDER-INFLATED?

Can you tell with naked eyes which tire below is under-inflated? A tire can be under-inflated by as much as 20 per cent and still look fine. For a safe ride, it is important not to eyeball or guess if tires have enough air. With FOBO Bike 2, you will be alerted the moment you get in Bluetooth range with the tires if the pressure has dropped below the thresholds you set. You can also view the tire pressure on your smartphone or smartwatch without bending your knees or getting your hands dirty or even when you are riding.

24x7 Monitoring of Your Bikes Tires

Know in real time as it constantly reads the tire pressure and compares against user set thresholds.



Multiple Mode of Alerts - Audible, Haptic & Visual Alerts

FOBO Bike 2 sends audible, haptic and visual alerts to compatible Bluetooth headsets, smart watches and phones when it detects real time tire pressure drops below preset threshold.



Slow & Fast Leak Detection

A slow leak is usually difficult to detect and it may get you stranded in rural areas. FOBO Bike 2 reads tire pressure in fine resolution and analyses the readings with its proprietary algorithm. Upon detection of a slow leak, it will immediately alert the user. When there is a considerable change of tire pressure over a short duration(in seconds), FOBO Bike 2 determines this as a fast leak and immediately sends out alerts.

Multiple Vehicles Monitoring

View all your motorcycles tire pressure and temperature in one app, up to 19 wheels. Moreover, you get an alert if there is a breach of threshold when you are in Bluetooth range.

Group Ride Monitoring

This feature let riders form a group ride with a planned destination, date and time. During the group ride, riders can know the tire pressure status and the relative locations of one another in the Map View. If you find that your riding peer is missing and see a tire pressure alert insignia by his bike profile, you know that he may be stranded at the location on the Map View and may use your help. This is useful when cellular phone signal is not available to call for help.



FOBO Share

Sometimes we loan our bikes to friends and it would be nice if they can be assured of riding with optimal tire pressure. FOBO Share, a patented function, allows your friends(Sharee) to use your motorcycle and the installed FOBO Bike 2 with their very own smartphones; this can be done for up to 100 other friends with qualified smartphones. Just download the FOBO Bike 2 App and send a “key”/ “request” to you who will grant permission to use FOBO Bike 2 with just a click. Sharing has never been easier.



Remote Monitoring - Auto Push & Pull Data

Ever wonder if your loved one is riding with an optimal tire pressure? When FOBO Share is in use, the owner can view the tire pressures on his or her very own smartphone even when the Sharee is riding far away. Likewise, when the owner is riding far away on the motorcycle, the Sharee can view the tire pressures on his or her very own phone. This is done through FOBO's patented technology.



Seamless Swap from One Smart device to another (CrossPairTM)

The patented CrossPair technology enables a seamless swap from one smart device to another to monitor FOBO Bike 2. This feature is useful when changing to a new phone or just simply swapping to a different phone. All installed FOBO Bike 2 profiles will be transferred to the new device, without the need to individually pair and install again.



2-Levels of Theft Deterrent

The first level of deterrent is done with proprietary nuts and wrench. In the event that the sensor is still stolen, it cannot be installed again. This second level of deterrent removes the economic value of the sensor. For ownership transfer, the original owner must release the sensors from his profile using the app

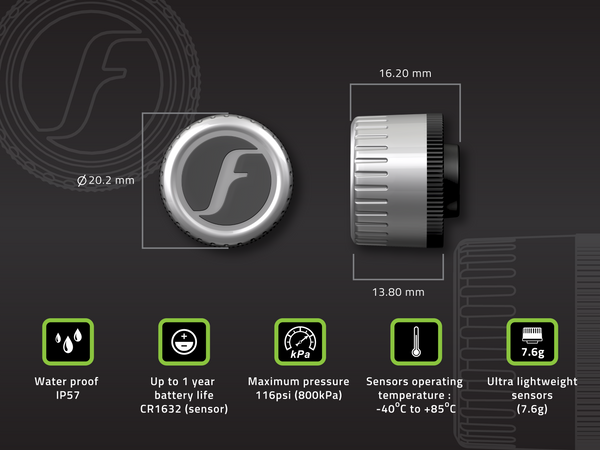

FOBO Bike 2 sensor (TM1802) Specifications



  •  Bluetooth: v5.0
  •  Transmit Conducted Power: +5.0dBm (sensor)
  •  Receiver Sensitivity: Conducted Sensitivity -97dBm @ 0.1%BER
  •  Antenna Return Loss: Typical -9dB
  •  Operating Frequency: 2.402~2.480 GHz
  •  Battery Type: CR1632 (sensor). Operating life up to 1 year. (NOTE: The battery operating life varies according to usage and climate temperature)
  •  Operating Temperature: -40°C to +85°C (sensor), -20°C to +60°C (sensor with common CR1632 batteries)
  •  Weight: 7.6g (sensor –with battery)
  •  Sensor Dimension H x D: 13.8mm x 20.2mm
  •  Maximum Pressure800kPa (116psi)
  •  ESD: 8kV air discharge & 4kV direct contact discharge according to CE standard
  •  Operating Humidity: up to 90% non-condensing at 40oC
  •  Dust and Water Proof: IEC60529 compliant to IP57(sensor)
  •  Sensor structural threshold: 100N ball pressure intensity test
  •  Mechanical & Environmental Reliability Testing Standards: IEC 60068-2-2, IEC 60068-2-1, ISO 21750, IEC 60068-2-29, IEC 60068-2-5, IEC 60068-2-32, ISO 15184, ISO 2409, SAE J2657, SAEJ113/13

Please ensure sufficient clearance between installed FOBO Bike 2 For Trike sensor and any part of the bike. There is a risk of damage to the sensor or ripping off valve from the rim or sudden air leak if clearance is insufficient; the valve may deflect under strenuous vibration.

Ensure sensor clearance with vehicle parts is 10 mm (3/8”) and 3 mm (1/8”) for installation on a rubber valve and a metal valve, respectively. (For metal valve only, the most definitive test is to push the motorcycle which has been installed with the sensors for a short distance forward or backward to ensure that the closest part such as the brake caliper does not knock or touch the mounted sensors.)

RUBBER VALVE: FOBO strongly recommends use of sensors with only metal valves as many as user finds that it is difficult to determine the fitness conditions of rubber valves. Use of sensors with rubber valves can cause a leak of tire blowout which it turns leads to sudden loss of control of the vehicles that subsequently leads to an accident and serious injuries. If user chooses to use rubber valves, users must regularly check if the valves are fit to use. FOBO is not liable for any untoward consequences.
