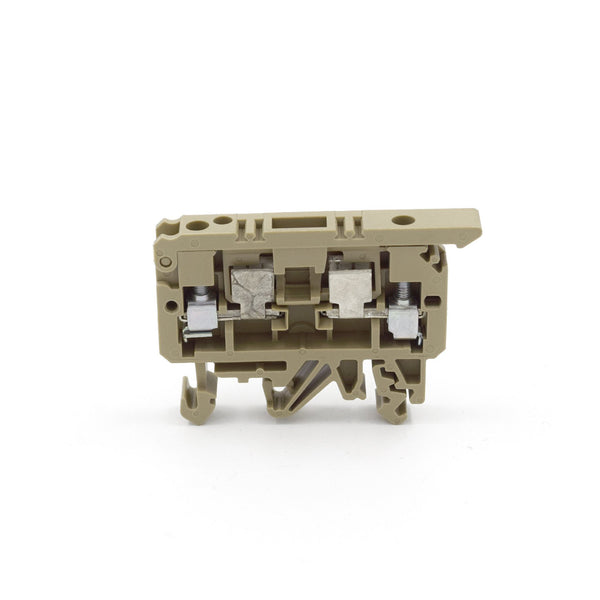

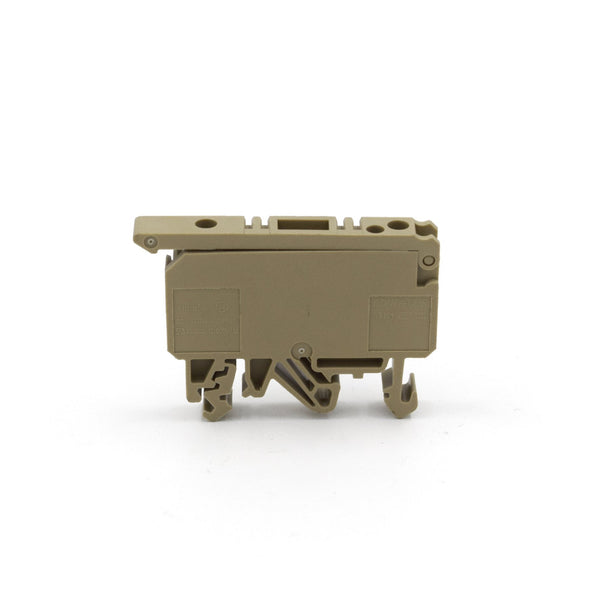

Conta-Clip STK 1 500V~4mm² 6.3A beige fuse terminal block with screw connection for 5x20mm and 5x25mm tubular fuses.
Fuse terminal block which can be installed into DIN rail to protect devices and wires in case of fault.
Fuse terminal block technical details:
- Compatible cable size:
- 4mm²
- Compatible with the followng fuse sizes:
- 5x20mm and 5x25mm glass tube fuses
- Number of levels:
- 1
- Number of clamping points:
- 2
- Number of potentials on level:
- 1
- Levels cross connect internally:
- No
- PE connection:
- No
- PEN function:
- No
- Connection method:
- M3 Screw connection with slotted head
- Max nominal voltage:
- 500V
- Max impulse voltage:
- 4000V
- Max rated current:
- 6.3A
- Color:
- Beige
- Material:
- Chassis:
- Polyamide (PA 6.6)
- Contacts:
- Tinned copper
- Clamps:
- Zinc-plated steel
- Chassis:
- Operating temperature:
- -40...105°C
- Mounting method:
- 35mm DIN rail and G rail, clip in attachment
- Atex classification:
- No classification
