JRP Edge Digital Air Fuel Ratio Gauge 52mm

Regular price $147.87

Shipping calculated at checkout.

The gauges can display two types of readouts, the first is AFR mode with a scale of 10 to 20, the second is Lambda mode with a scale of 0.68 to 1.36.

Note these are just a digital air fuel ratio gauge only, they are not a wideband kit, if you are looking for a wideband kit that comes with a wideband controller, 02 sensor & gauge then checkout our wideband section on the website for a great range of wideband kits which come with one of these digital air fuel ratio gauges. These gauges are intended for customers that already have a wideband kit and want to add a gauge to it or replace a broken gauge.

To use these gauges the wideband you plan to connect these too will need to output a 0-5v analog wideband signal with a range of 10 to 20 AFR as standard or can update the analog output to this specification. If in doubt, please message us before ordering and we will be happy to confirm if these AFR gauges will work for your purpose.


Display Modes AFR or Lambda
10 to 20 AFR Range
0.68 to 1.36 Lambda Range
Numeric & Scale Readout For AFR
Numeric Readout For Lambda
0-5v Analog Input Supported

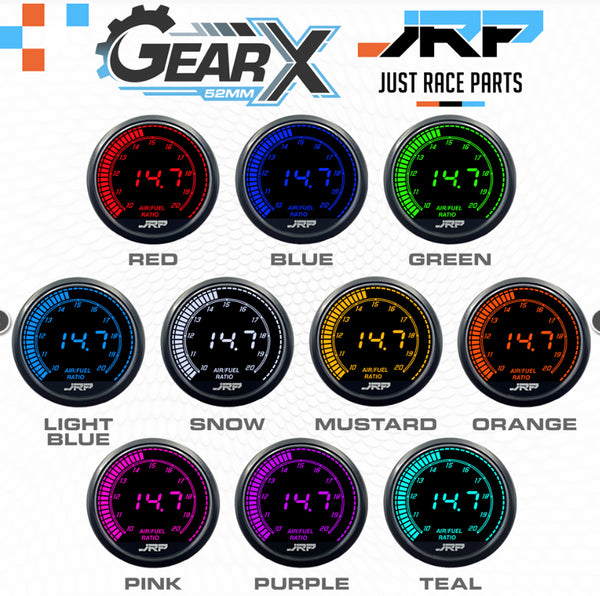

10-Colour Selectable LCD
3 Opening & Closing Ceremonies
Day & Night Brightness Settings

In the Box

52mm Edge Digital AFR Gauge
52mm Gauge Pod
U-Bracket Pillar Mounting Kit
1M Wideband Input Cable
1M Remote Button Controller
1.5M Power Cable
20cm Power Link Cable
