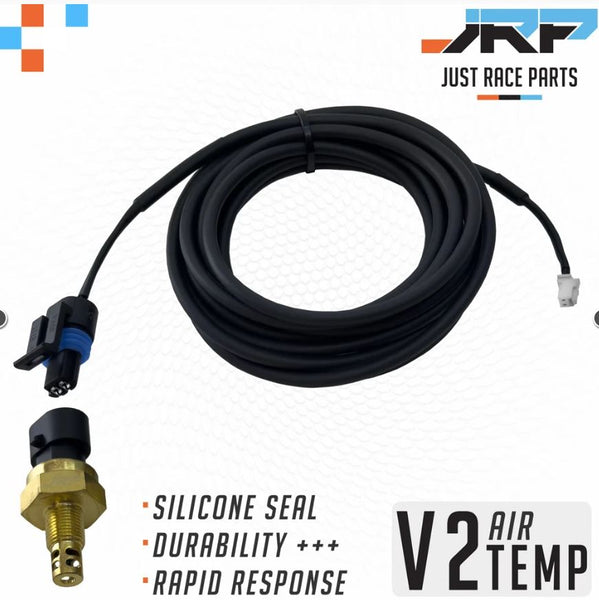

JRP IAT Sensor V2 – Intake Air Temperature Sensor
The JRP IAT Sensor V2 is a compact, fast-response intake air temperature sensor designed for performance and aftermarket ECU applications.
Developed from JRP’s original V1 sensor, the V2 features a smaller 1/8 PT thread, improved installation flexibility and approximately 30% faster response, allowing the ECU to react more quickly to changes in intake air temperature.
Key Features
-
1/8 PT thread
-
Compatible with 1/8 NPT and 1/8 BSP ports
-
Approximately 30% faster response than JRP V1
-
Compact design for easier installation in tight engine bays
-
Brass body with exposed sensing tip
-
Operating temperature range: -40°C to 150°C
-

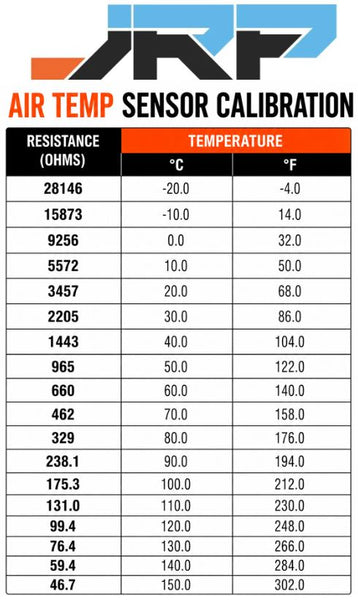

Same calibration curve as JRP V1 sensors
-
Same calibration as popular GM Delphi / AC Delco 213-192 & 213-190 sensors
-
Compatible with JRP 52mm IAT Gauges
-
Compatible with JRP 14-in-1 Multi Gauge systems
-
Suitable for many aftermarket ECU applications
Important Fitment Note
JRP V2 sensors use a 1/8 PT thread, while the earlier V1 sensors used a larger 3/8 NPT thread.
If replacing a JRP gauge sensor purchased before December 2025, the V2 sensor is electrically compatible, but a different threaded bung may be required.
Ideal For
Performance, turbocharged and modified vehicles requiring fast and accurate intake air temperature monitoring.
